Avalue Technology Inc. Launches EMX-PTLP AI Motherboard
Thin Mini-ITX platform powered by Intel Corporation Core Ultra Series 3 for embedded AI systems.
www.avalue.com

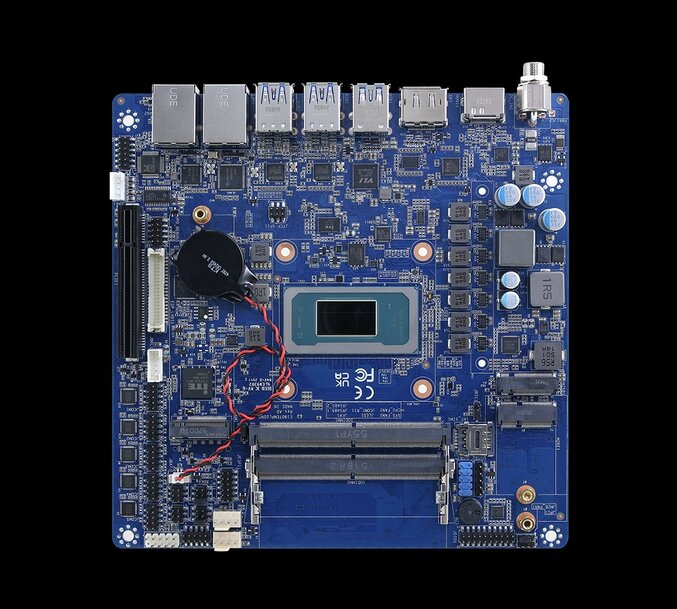

Avalue Technology Inc. has introduced the EMX-PTLP Thin Mini-ITX industrial motherboard, designed to support AI-driven industrial and embedded computing applications.
The new platform is powered by Intel Corporation Core Ultra Series 3 processors, delivering high-performance processing and advanced AI acceleration for next-generation automation and embedded systems.
AI-optimized performance
The EMX-PTLP motherboard supports up to 64 GB of DDR5 memory running at 7200 MHz, providing significant improvements in processing speed and system responsiveness.
Designed for AI and data-intensive workloads, the platform delivers up to 180 TOPS of AI performance and incorporates PCIe 5.0 technology, doubling bandwidth while reducing latency. These capabilities enable high-performance computing (HPC) and AI acceleration in compact embedded systems.
Flexible expansion and connectivity
The motherboard offers a wide range of expansion options for industrial applications:
- PCIe Gen5 expansion slot for high-speed system scaling
- M.2 Key B, E and M interfaces for wireless modules and storage
- SIM card or SIM FPC support for remote connectivity and device management
For storage-intensive applications, the board supports RAID 0/1 configurations using dual M.2 SSDs, ensuring fast data access and redundancy.
Advanced display capabilities
The EMX-PTLP supports up to four independent displays through HDMI, DisplayPort and USB4 Type-C outputs, enabling high-resolution visual computing applications with support for up to 8K resolution.
Legacy compatibility is maintained through LVDS and eDP interfaces, allowing integration with existing industrial display systems.
Industrial-ready design
To support factory automation and industrial computing environments, the motherboard includes:
Advanced display capabilities
The EMX-PTLP supports up to four independent displays through HDMI, DisplayPort and USB4 Type-C outputs, enabling high-resolution visual computing applications with support for up to 8K resolution.
Legacy compatibility is maintained through LVDS and eDP interfaces, allowing integration with existing industrial display systems.
Industrial-ready design
To support factory automation and industrial computing environments, the motherboard includes:
- Dual Intel LAN connectivity (2.5G + 1G) for reliable industrial networking
- Two USB4 Type-C ports and four USB 3.2 ports
- Five RS-232 serial ports, including RS-422/485 support
- 16-bit GPIO and TPM 2.0 security module
The board supports a 12–24V DC power input and includes a 6W audio amplifier, reducing the need for additional external components.
Built for AI-driven automation
The EMX-PTLP Thin Mini-ITX motherboard is designed for industrial automation, computer vision, robotics, and AI-enhanced edge computing applications. Its compact form factor and rugged design make it suitable for demanding industrial environments.
Mass production of the platform is scheduled for Q3 2026, supporting deployment in next-generation AI-enabled automation systems.
Edited by industrial journalist, Lekshman Ramdas.
