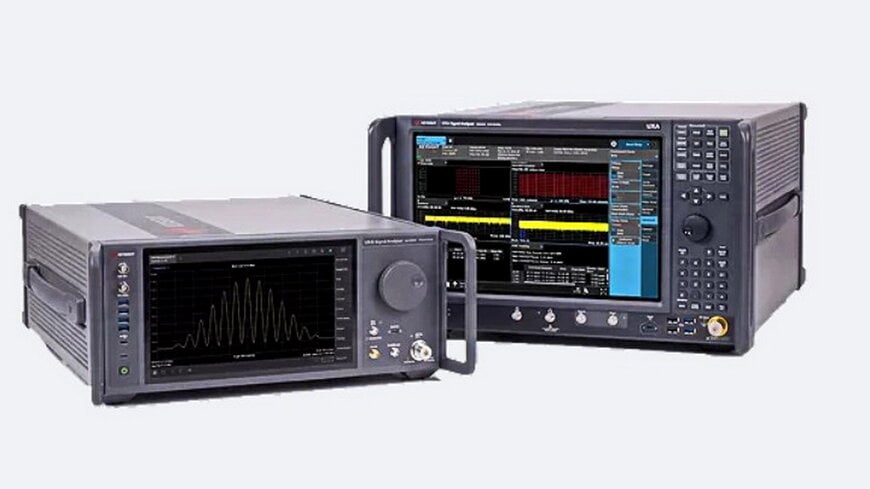

Signal Analyzers for Wideband and High Frequency Wireless Systems

The collaboration between advanced hardware architecture and high-performance computing enables these instruments to address the evolving testing requirements of wireless systems, radar, and electromagnetic spectrum operations. The hardware systems target validation bottlenecks within the aerospace, defense, and telecommunications industries, where wider bandwidths and millimeter-wave frequencies introduce measurement uncertainty and prolonged debugging cycles.

Hardware Architectural Capabilities and Wideband Analysis
Modern RF engineering demands broad analysis bandwidth to capture fast, transient signals without relying on multiple sequential captures. The Pro XA6 SA6320A provides up to 8 GHz of analysis bandwidth alongside a full preselection capability operating up to 67 GHz. This wideband capture architecture minimizes missing intermittent spectral events during millimeter-wave design validation. For everyday wireless test applications, the Expert XA5 SA6210A offers fast swept measurements up to 32 GHz paired with an analysis bandwidth up to 2 GHz.

To maintain regulatory compliance and support standards-compliant signal measurements, the Pro XA6 SA6320A features a resolution bandwidth extending up to 80 MHz. The RF front-end parameters, including low displayed average noise level and optimized phase noise, allow engineers to identify low-level spurious signals and wideband impairments that are typically masked by the noise floor of standard instruments.

Multi-Channel Validation and Computational Acceleration
As multi-antenna and multi-input multi-output architectures become standard in 5G New Radio and wireless local area network technologies, dual-channel processing becomes critical. The Expert XA5 SA6210A integrates a dual-receiver architecture within a single platform. This hardware layout permits single-instrument analysis of complex RF interactions, supporting multi-input multi-output measurements and cross-correlated error vector magnitude calculations to reduce overall measurement uncertainty.

To compress execution times during intensive demodulation tasks, the Pro XA6 SA6320A incorporates graphics processing unit-accelerated computing. This computational mechanism accelerates the processing of wide-bandwidth 5G New Radio error vector magnitude measurements, reducing data processing latency during iterative R&D cycles. Furthermore, the integration of legacy X-Series Standard Commands for Programmable Instruments compatibility ensures that existing automated test software assets can be migrated without extensive recoding.

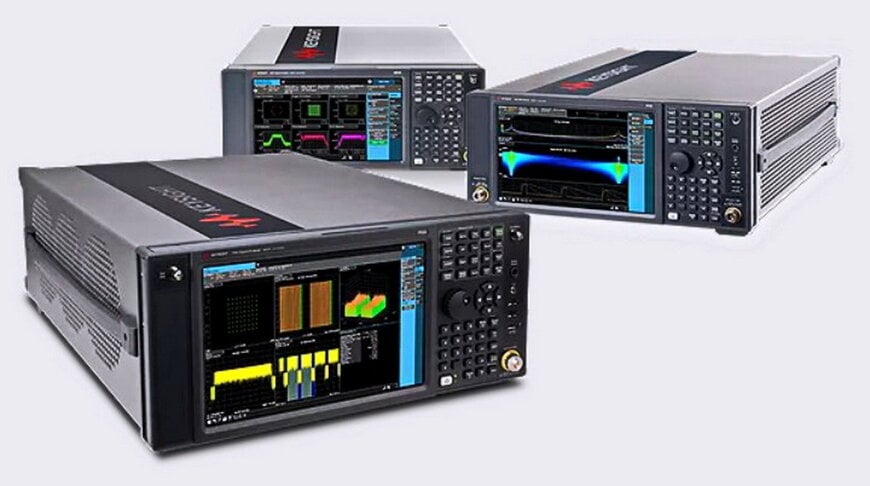

Keysight Expert XA5 SA6210A signal analyzer.

Additional Context: Technical Specifications and Competitive Benchmarking
In high-performance spectral analysis, instrumentation utility is dictated by bandwidth, frequency ceiling, and computational throughput. The Pro XA6 SA6320A expands upon standard high-end architectures by scaling analysis bandwidth to 8 GHz. Traditional high-performance signal analyzers often max out at 4 GHz to 5 GHz of instantaneous bandwidth, requiring external downconversion or multiple digitized steps to analyze wider segments. By natively integrating 8 GHz of real-time analysis bandwidth alongside 67 GHz preselection, the platform eliminates the image responses and sub-harmonic mixing issues common in external mixing setups.

When evaluated against traditional multi-channel testbeds, the dual-receiver architecture of the Expert XA5 SA6210A eliminates the synchronization error inherent in linking two separate, single-channel signal analyzers. The internal cross-correlated error vector magnitude engine cancels out the residual noise floor of the instrument itself, providing a truer representation of the device-under-test performance than single-channel architectures can achieve without complex manual calibration procedures.
