High-Capacitance Automotive MLCCs with Soft-Termination

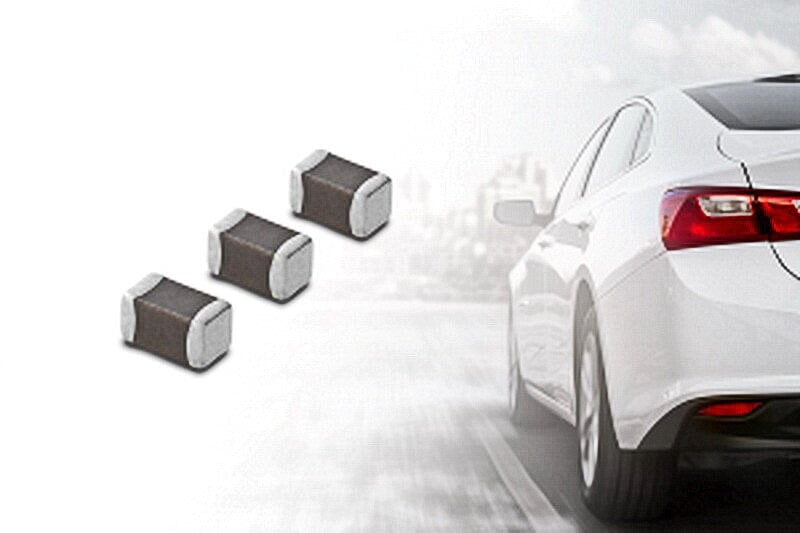

The introduction of a new soft-termination chip multilayer ceramic capacitor provides a high-capacitance electronic component solution for automotive powertrain and safety systems. This development targets the demanding electrical and physical environments of next-generation vehicular platforms.

Miniaturization and High-Voltage Performance in Automotive Electronics
Accelerating vehicle electrification and the integration of advanced driver-assistance systems require electronic components that occupy minimal board space while handling higher power loads. The widespread implementation of 48-volt power architectures drives the need for capacitors capable of managing elevated voltages without increasing the overall footprint of the printed circuit board.

Technical Specifications and Structural Reliability
The component achieves a capacitance of 2.2 microfarads at a direct current voltage rating of 100 volts within an 0805-inch (2.0 by 1.25 millimeter) form factor. This volumetric efficiency represents an approximate 51 percent reduction in mounting area compared to previous 1206-inch (3.2 by 1.6 millimeter) designs required for identical ratings. The underlying technology relies on a proprietary ceramic material design that controls fine particle size and uniformity, resulting in a 2.2-fold increase in capacitance over prior implementations of the same size.

To mitigate risks associated with mechanical vibration and thermal cycling during vehicle operation, the component features a soft-termination layer. This elastic conductive resin layer absorbs mechanical stress caused by board flexure, significantly reducing the occurrence of post-mount ceramic cracking. The device operates across a temperature range from -55°C to +125°C and complies with the X7T temperature characteristics specified under Electronic Components Industry Association standards.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

Standard multilayer ceramic capacitors utilizing conventional rigid termination materials are highly susceptible to fracturing when subjected to board bending forces exceeding 2 millimeters. Soft-termination variants mitigate this by incorporating a conductive polymer layer within the outer electrodes, typically allowing them to withstand flexure up to 5 millimeters before failure. While alternative automotive-grade components in the 0805 footprint generally cap capacitance at 1.0 microfarad for 100-volt ratings under X7R or X7S temperature characteristics, the utilization of X7T characteristics allows for higher effective capacitance under operating direct-current bias conditions, establishing a higher volumetric efficiency standard for power-line filtering applications.
