High-Reliability Compact Interconnect Systems for Unmanned Aerial Vehicles

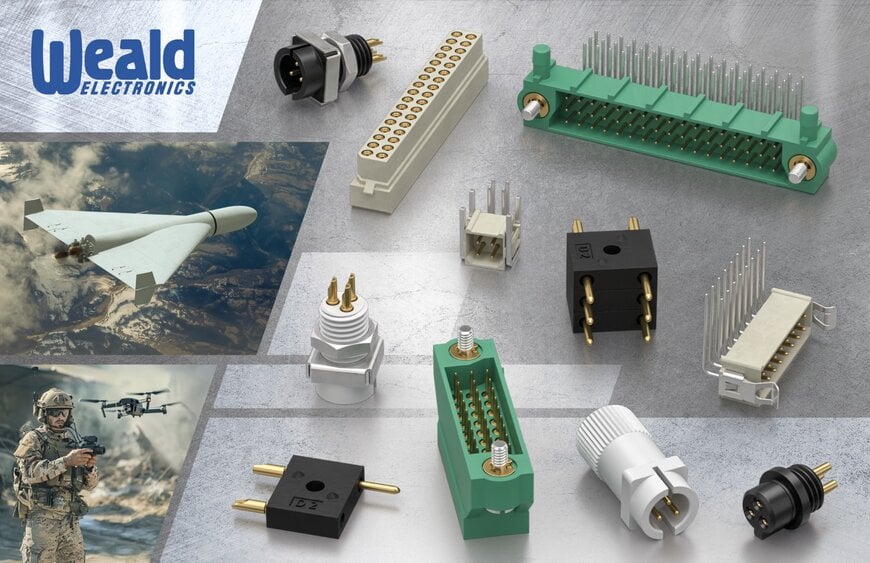

Lane Electronics is distributing a portfolio of ultra-compact, low-weight connector systems manufactured by Weald Electronics to address the expanding hardware demands of the Unmanned Aerial Vehicle (UAV) market. These components provide high-vibration resistance and reliable signal mating for defence, surveillance, aerial mapping, and industrial inspection applications integrating advanced autonomous control mechanisms.

Addressing UAV Electrical Interconnect Demands
The rapid evolution of defence and commercial drone programs requires lightweight platforms delivered within compressed development cycles. As onboard Artificial Intelligence (AI) processing and autonomous control systems become standard, the physical hardware must support increased data and power transmission without adding excessive mass. By leveraging established aerospace connector systems rather than custom designs, engineers secure proven reliability in high-vibration, mission-critical environments while maintaining immediate supply availability.

High-Density and Modular Architectures
To support varying Printed Circuit Board (PCB) and cable configurations, the LM200 Series operates as a 2mm pitch connector system compliant with the BS9525 F0033 standard. Available in single- and dual-row formats, the two-part connectors utilize UL94 V-0 high-temperature insulators and aerospace-grade gold-plated contacts with positive spring latching, ensuring continuous connection across a -55°C to +125°C temperature range. For higher density requirements, the M300 Series expands this architecture into a three-row 2mm pitch footprint, delivering up to 3A per contact with an optional jackscrew locking mechanism for secure mating in restricted physical spaces.

Configurable and Ultra-Miniature Circular Solutions
Applications necessitating highly specific power and signal routing utilize the modular D2 Series. This rectangular connector system employs stackable double-contact modules utilizing a single M2 fixing, with gold-plated solder bucket contacts rated up to 5A per contact in operating temperatures spanning -40°C to +125°C. For physical envelopes where rectangular connectors are unsuitable, the SMC Series provides an ultra-miniature circular alternative. With an 8.45mm overall diameter, this three-way polarized connector features snap-lock mating and 3A continuous contacts, functioning effectively in highly compact UAV subsystems where standard connectors exceed space limitations.

Supply Chain Logistics and Component Availability
The deployment of these interconnects relies on a substantial component inventory maintained by the distributor, supporting both rapid prototype supply and scalable production. Standard components achieve dispatch readiness rapidly, while specialized military and industrial circular connectors undergo in-house assembly and testing to bypass standard industry lead times. This supply infrastructure allows UAV manufacturers to maintain aggressive development schedules without compromising mechanical retention or electrical performance.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

In the high-reliability 2mm pitch connector market, systems compliant with the BS9525 F0033 standard, such as the LM200, compete directly with established product lines like the Harwin Datamate J-Tek. Both systems prioritize mechanical retention and vibration resistance in aerospace applications, typically offering identical 3A per contact current ratings and similar -55°C to +125°C thermal operational limits.

Alternatively, defense contractors frequently specify MIL-DTL-83513 Micro-D connectors, which provide a denser 1.27mm pitch. While Micro-D systems offer superior contact density, 2mm modular systems like the LM200 and M300 often deliver a lower total mating weight and simplify field termination, presenting a distinct measurable advantage for payload-restricted UAV platforms.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.

www.fclane.com
