X-Capacitor Discharge ICs for AC-DC Power Supply Efficiency

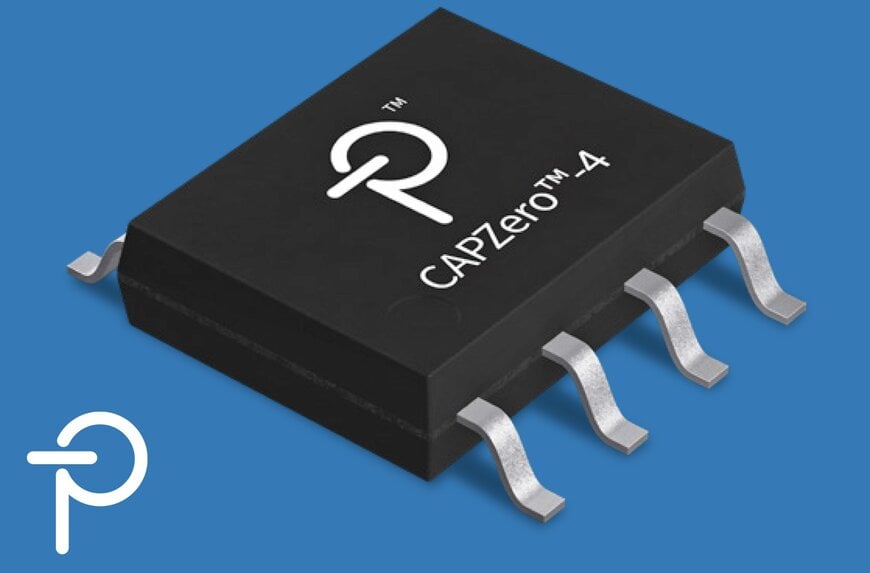

Power Integrations is releasing the CAPZero-4, the fourth generation of its X-capacitor discharge integrated circuits (ICs), to address standby power reduction in AC-DC converters. The hardware targets power conversion efficiency within industrial automation, home appliances, and consumer electronics where zero-watt no-load operation is a structural requirement.

Operational Mechanics and Power Conversion Efficiency
The CAPZero-4 IC functions by physically disengaging the energy-consuming discharge resistor in an AC-DC power supply during normal operation. Once the device is disconnected from the AC line, the IC automatically reconnects the resistor to safely bleed residual energy from the X-capacitor. By eliminating the continuous electrical losses typically caused by bleed resistors, the hardware reduces system no-load and standby input power by up to 1000 milliwatts (mW). This reduction is mathematically significant for embedded power supplies engineered to meet strict total system standby limits of 300 mW or less. The CAPZero-4 device itself consumes less than 0.75 mW at 230 VAC, supporting architectures aiming for zero-watt no-load thresholds.

Engineering Integration and Application Standards
The IC series supports AC-DC converters with line-to-neutral input capacitance ranging from 100 nF to 6 μF. To accommodate harsh environments and outdoor industrial deployments, the thermal operating range has been expanded to span from -40 degrees Celsius to 125 degrees Celsius. The hardware provides a drop-in replacement capability, maintaining package and pin-compatibility with previous generations to allow integration without extensive circuit redesigns. Engineers configure the discharge time by selecting appropriate external resistor values to meet specific application criteria.

The resulting designs comply with global safety standards, including IEC 60335, EN/IEC 62368-1 (NEMKO), UL 62368-1, and GB 4943.1 (CQC), facilitating ErP Lot 6 compliance for consumer appliances and adapters.

Addressing the engineering integration of the new components, Edward Ong, senior product marketing manager at Power Integrations, stated: "The fourth generation of our CAPZero technology delivers more of the available power to the load during standby. With its pin-to-pin and package compatibility with previous CAPZero devices, customers can adopt it without redesigning."

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

Within the power management integrated circuit market, X-capacitor discharge solutions are evaluated based on their quiescent power consumption, maximum blocking voltage, and thermal operating limits. Competitors such as NXP Semiconductors (with the TEA1708 series) and ON Semiconductor provide comparable active discharge ICs for high-voltage AC-DC power supplies. Technical differentiation in this specific component sector is objectively measured by the active-state current draw (often hovering around 1 mW for standard market alternatives compared to the 0.75 mW threshold of the CAPZero-4), the ability to handle surge voltages directly on the AC line without sustaining damage, and the required footprint size on the printed circuit board (PCB) to achieve IEC 62368-1 safety certification.
