SAMWHA's YK Series Polymer Hybrid Capacitors Deliver Enhanced High-Temperature Performance
Now available through Rutronik, SAMWHA's YK series polymer hybrid capacitors provide extreme temperature resilience (-55°C to +135°C) for automotive, industrial, and 5G applications.
www.rutronik.com

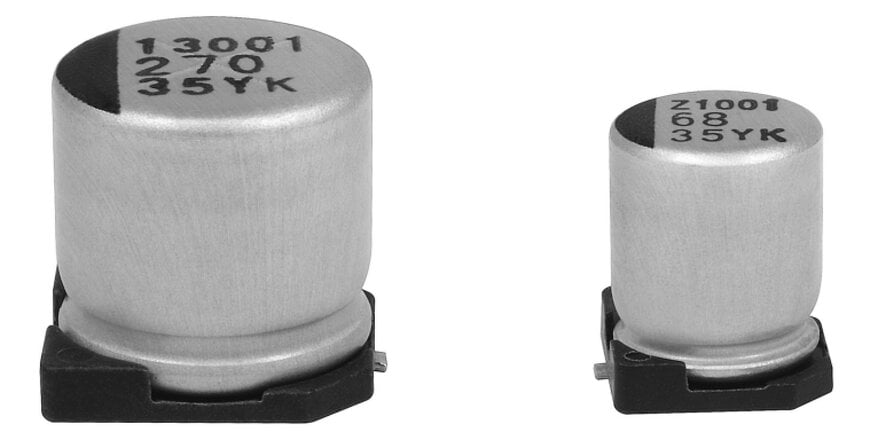

New to the Rutronik portfolio is the YK polymer hybrid aluminium electrolytic capacitor series from SAMWHA. The newly introduced capacitors, known as the ‘High Temperature Series’, are installed in SMD chip housings and combine high electronic performance with robustness. The high conductivity of the polymer ensures low losses, while the liquid electrolyte ensures self-healing of the dielectric and stable capacitance. The capacitors offer better frequency response compared to classic liquid electrolytic capacitors and score particularly well with their high temperature resistance. They are AEC-Q200 qualified and ideal for use in automotive electronics, telecommunications & 5G infrastructure, energy and power electronics.
The YK series relies on hybrid technology that combines conductive polymer and liquid electrolyte in the capacitor. This combines the advantages of both technologies for very low ESR and high ripple current resistance without excessive heating.
With an extended operating temperature range from -55 °C to +135 °C, the YK series achieves comparable capacitance values of approx. 33 µF to 470 µF, depending on the rated voltage and size. For example, the YK capacitors offer up to 330 µF @ 35 V in a 10 mm x 10 mm SMD package, while the previous YH model only delivered 150 µF @ 35 V with a similar size. Depending on the model, the rated voltage of the capacitors is typically between 25 V and 63 V DC.
Benefits at a glance:
- ‘High Temperature’ series with improved temperature resistance
- Nominal voltages typically 25 V to 63 V DC
- Capacitance range: approx. 33 µF to 470 µF
- Capacitance tolerance: ± 20 % at 120 Hz, 20 °C
- Operating temperature range: -55 °C to +135 °C in continuous operation
- Service life: up to 4,000 hours at +135 °C ambient temperature
Application examples:
1. Automotive electronics
- Control units
- Sensors and actuators in the engine compartment
- Driving assistance systems
- On-board power converters
2. Industrial electronics and control
- Frequency converters
- Drive control
- Switched-mode power supplies
3. Telecommunications and 5G infrastructure
- Filter and amplifier modules in radio base stations
- Server power supplies
- Data centre electronics
4. Energy and power electronics
- Charging stations
- Battery buffers, UPS
For more information to the YK polymer hybrid aluminium electrolytic capacitor series from SAMWHA and a direct ordering option, please visit our e-commerce platform.
