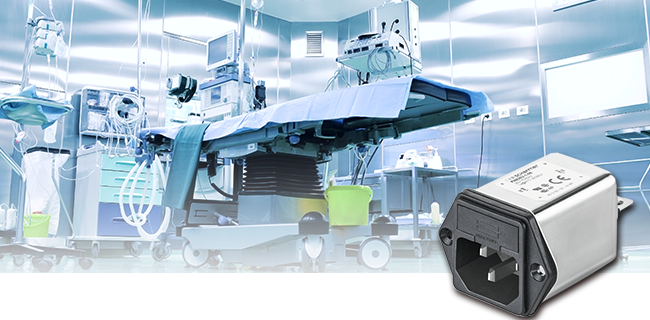

New high-performance, IEC C14 Power Entry Module with fuse holder or switch now available from Schaffner

New high-performance, IEC C14 Power Entry Module with fuse holder or switch now available from Schaffner

Schaffner Group, the internationally leading company in the field of electromagnetic compatibility introduces a new series of RFI filters featuring an IEC C14 PEM (power entry module) with integrated fuse holder or switch.

The high-performance filter series FN 9262 (with fuse holder) and FN 9266 (with dual pole switch), have been developed for applications demanding high RFI attenuation performance. They represent an enhanced version of the already market proven FN 9260 and FN 9264 filter families. One of the key applications for this filter is the medical market and the filter carries additional approvals making it easier for the end users to implement into their designs. FN 9262 B and FN 9266 B (B-types) filters meet the insulation requirements according to IEC 60601-1 1MOPP (1 means of patient protection).

Both filter series outperform the existing filters FN 9260 and FN 9264 over the whole frequency range. This increased performance lies in two key components: the advanced core material (common mode performance) and the increased X-capacitor values (differential mode performance).

The housing dimensions are identical to the existing series making an exchange between the filters simple. In addition, the PEMs (Power Entry Modules) are mechanically compatible with almost all similar style products in the market and the same as the FN 9260 and FN 9264.

With the new variant diversity (FN 9260/2/4/6) and the present attenuation properties, this filter family offers a solution for medical devices, and modern appliances for household, audio and video. They can also be used in other applications with similar requirements.

The filters have all the required safety approvals (UL 60939-3, CSA C22.2 No. 8, IEC 60939-3 and CQC), they carry a CE mark and are compatible with the RoHS II (2015/863) directive.

For further information, please visit www.schaffner.com
