Telit Cinterion Unveils Module for Reliable Location with Dead Reckoning

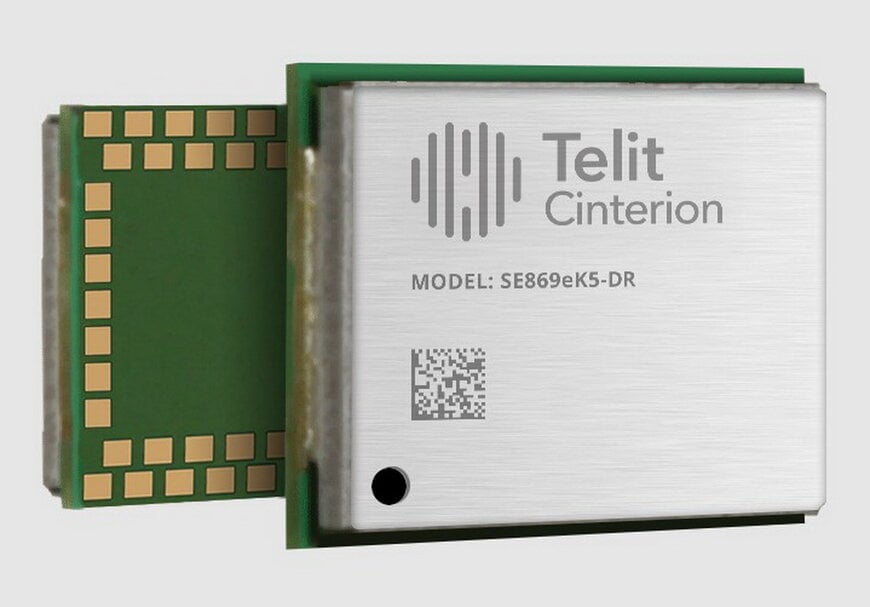

Telit Cinterion, an end-to-end IoT solutions enabler, announces the SE869eK5-DR, a dual-band, multi-constellation positioning receiver with untethered dead reckoning (UDR) built on the Airoha AG3335 chipset family. The SE869eK5-DR features UDR which ensures reliable, continuous positioning even when satellite signals are lost due to jamming, interference or physical obstructions. With its power-efficient design, the module is ideal for mission-critical applications in business and government that demand ultra-reliable location information, and long battery life.

Building on the successful Telit Cinterion SL869 series, the SE869eK5-DR adds an integrated six-axis sensor for UDR. This powerful combination allows the module to maintain a position fix even when signals are blocked or jammed, making it ideal for tracking high-value assets deep inside buildings or in underground parking garages. The SE869eK5-DR also supports L1 and L5 bands, which maximizes resiliency through frequency redundancy. For example, if one band’s signals are degraded by physical obstructions, the other band provides an alternative set of signals. The module also supports Differential GNSS (DGNSS) positioning for applications that require sub-meter level accuracy.

The SE869eK5-DR includes several features that streamline product development. For instance, its UDR technology is simple to integrate because it doesn’t require any external application information, which shortens the design phase. It also automatically identifies the direction of movement (forward or reverse), eliminating the need for a separate heading pin. The SE869eK5-DR provides exceptional design flexibility. While it introduces an additional 34 pins for future use, it remains backward compatible with previous 24-pin generations. This allows device OEMs to easily upgrade existing designs on this community form factor, which measures 12.2 by 16 millimeters, and expands product capabilities over time.
