Miniature Crystal Oscillators For High-Speed Networking

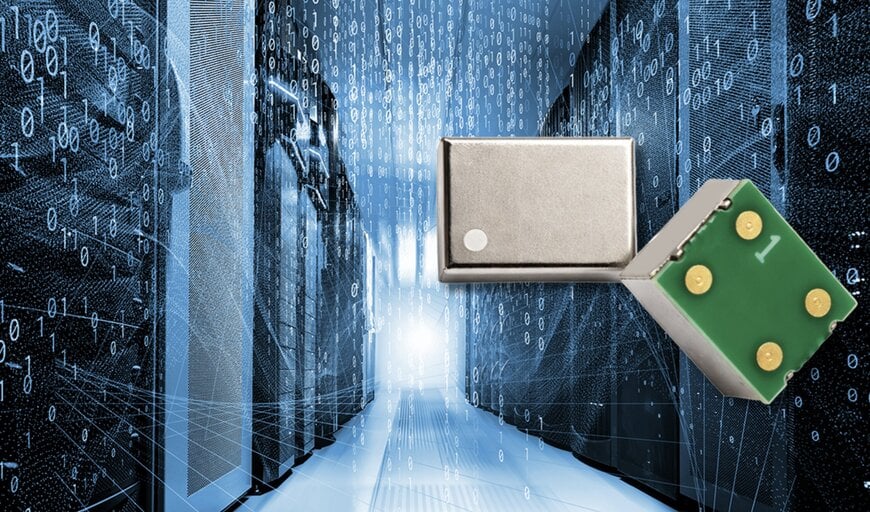

Raltron is releasing the OX7000 Series, a surface-mount oven-controlled crystal oscillator designed to deliver stable timing reference clocks for high-volume network interface cards and data center hardware. This low-phase-noise component is engineered for enterprise computing environments, supporting the uninterrupted digital supply chain of data across servers, storage arrays, and switching platforms.

Optimizing Board Footprint And Power Consumption
As data center architectures scale to accommodate higher bandwidth, hardware engineers operate under strict constraints to minimize printed circuit board area while controlling overall thermal output. Raltron's newly released timing component addresses these physical limitations by utilizing a compact 9 mm by 7 mm surface-mount package. This reduced form factor allows network interface card designers to integrate precise frequency control without dedicating excessive physical space to the clock subsystem.

The device operates on a single 3.3 V electrical supply, prioritizing power efficiency during both initial activation and continuous operation. At an ambient temperature of 25 degrees Celsius, the oscillator draws between 0.8 W and 0.9 W during its initial warm-up phase. Once the internal oven reaches its target thermal equilibrium, the power consumption drops to a steady-state draw of 0.35 W to 0.5 W. This minimized power profile reduces the localized thermal load on dense server boards, contributing to overall system energy efficiency.

Environmental Resilience For Continuous Infrastructure
Hardware deployed in networking environments must maintain frequency stability despite constant physical and thermal stressors. To ensure operational reliability in always-on infrastructure equipment, the series undergoes strict environmental qualification. The oscillators are validated against testing standards for mechanical shock, continuous physical vibration, and thermal cycling. These tests verify that the internal crystal and the surrounding oven circuitry will not drift beyond specified phase noise and stability tolerances when subjected to the ambient vibrations of server rack cooling fans or the temperature fluctuations inherent in high-density data centers.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

To evaluate this technology within the broader timing component market, it is necessary to compare the hardware against established standard oscillators. Traditional oven-controlled crystal oscillators often require larger physical footprints, such as 14 mm by 9 mm or larger packages, and frequently consume over 1.0 W of power during continuous steady-state operation.

By utilizing a 9 mm by 7 mm package and constraining steady-state power consumption to a maximum of 0.5 W, Raltron's oscillator bridges the operational gap between lower-precision temperature-compensated crystal oscillators and traditional high-power oven-controlled units. Comparable miniature network oscillators from established semiconductor manufacturers exhibit similar dimensional constraints but often vary in thermal stabilization efficiency and power draw depending on the specific integrated circuitry utilized for the internal heating element. The 0.35 W baseline places this specific device at the lower end of the power consumption spectrum for actively heated timing references.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.

www.raltron.com
