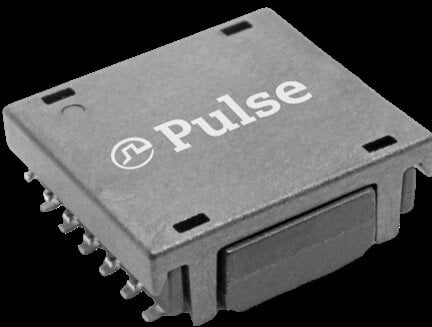

High-Isolation BMS Transformers for Next-Generation High-Voltage Battery Platforms

As safety, lifetime, and space constraints in modern high-voltage battery systems continue to increase, the demand for robust isolation and communication solutions within battery management architectures has grown exponentially. The introduction of the HM216xNL series directly addresses these challenges, allowing automotive and industrial manufacturers to seamlessly source qualified components and integrate them directly into their digital supply chain for high-volume assembly.

Automated Manufacturing and Technical Architecture
The new HM216xNL series includes both single- and dual-channel transformers engineered for basic and functional insulation. These components are specifically designed to provide secure galvanic isolation between high-voltage battery stacks and low-voltage BMS control circuits, enabling safe, reliable communication and continuous monitoring. Depending on the variant, the transformers support high working voltages ranging from 1,000 VDC to 1,600 VDC, with isolation voltage thresholds reaching up to 4,300 VDC.

To ensure long-term reliability and exceptional process stability, YAGEO utilizes an innovative header design produced via a fully automated manufacturing process. This automated production line minimizes structural variances, ensuring full compliance with IEC 61558 and IEC/UL 62368-1 standards. Furthermore, the devices are AEC-Q200 qualified and manufactured on TS16949-certified production lines, operating reliably across a wide temperature envelope from -40 °C to +125 °C while withstanding peak reflow soldering temperatures up to 245 °C.

Chipset Interoperability and Versatile Applications
To simplify system integration and accelerate the development cycle, the series is explicitly optimized for leading BMS chipsets from Texas Instruments, Analog Devices, NXP, and Infineon. Hardware designers can easily deploy these components into existing platforms without major PCB layout modifications, as their footprints remain fully compatible with current YAGEO Group BMS products. Highly flexible configuration options—including versions available with or without an integrated common-mode choke and center tap—allow engineering teams to precisely tune signal integrity.

By bridging the gap between cell-level telemetry and central control processors, these compact components establish the fundamental hardware layer required to feed real-time battery health diagnostics into the broader automotive data ecosystem. This high level of reliability and long-term stability makes the HM216xNL series exceptionally suited for a wide array of high-voltage battery platforms, ranging from electric and hybrid vehicles and stationary energy storage systems (ESS) to industrial energy systems, marine networks, and aviation applications.

Additional Context: This section details technical specifications and competitive benchmarking not included in the original product announcement
In the highly specialized domain of automotive BMS transformers, the YAGEO HM216xNL series distributed by Rutronik enters a market segment alongside alternative magnetic solutions from manufacturers such as Bourns and TDK. While competitor offerings frequently require separate components for common-mode filtering or suffer from manual assembly variances that compromise coplanarity during high-temperature reflow soldering, YAGEO’s fully automated manufacturing line guarantees strict dimensional tolerances capable of withstanding peak reflow temperatures up to 245 °C. This precision drastically reduces automated optical inspection (AOI) failures on the assembly line, lowering the overall cost of ownership for tier-1 automotive suppliers.

Furthermore, supporting working voltages up to 1,600 VDC positions the HM216xNL series ahead of many standard 800V-rated alternatives, effectively future-proofing battery architectures transitioning to next-generation 1200V and higher bus topologies. The inclusion of an optional integrated common-mode choke within a compact footprint allows design teams to mitigate high-frequency switching noise generated by the drivetrain inverter without adding parasitic inductance or consuming valuable PCB real estate. This level of hardware-level noise suppression is vital for preserving signal integrity in daisy-chained isolated Serial Peripheral Interface (isoSPI) or proprietary communications, ensuring stable, jitter-free data telemetry under severe electromagnetic interference (EMI).
