High-Efficiency 600V Super Junction MOSFETs

ROHM has released the R60xxXNx and R60xxWNx series of 600V Super Junction MOSFETs to address the growing demand for higher power density and thermal efficiency in data centers and industrial power supplies. These new components integrate high-speed switching capabilities with advanced surface-mount packaging to support space-constrained electronics architectures, including artificial intelligence servers.

Addressing Power Density Constraints in Data Centers

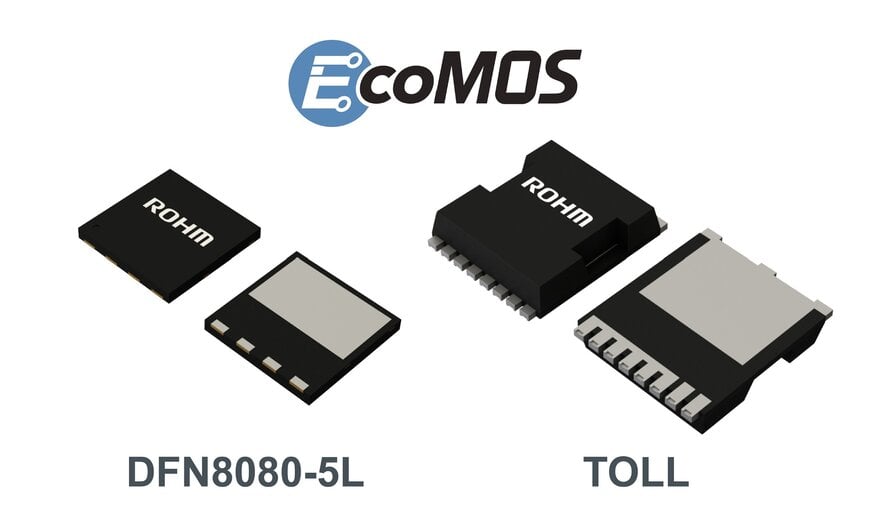

As processing loads in data centers and AI servers escalate, the corresponding power demand necessitates improved thermal performance and reduced power consumption. The R60xxXNx and R60xxWNx series address this physical limitation by transitioning to compact surface-mount packages. The product line includes the DFN8080-5L measuring 8.0 by 8.0 by 0.85 millimeters and the TOLL package at 11.68 by 9.9 by 2.3 millimeters. These low-profile form factors deliver the heat dissipation required to minimize thermal accumulation in tightly packed power supply circuits, allowing engineers to maximize output within restricted physical footprints.

Standardization and Multi-Sourcing Compatibility
To mitigate supply chain procurement risks and facilitate second-sourcing, these surface-mount packages utilize market-common footprints. The gate threshold voltage required to turn on the MOSFET is specified between 3V and 5V, aligning with standard industry requirements and enabling broad drive condition compatibility. This electrical specification allows hardware designers to integrate these components into existing power supply configurations without requiring extensive circuit modifications. Furthermore, improved admittance characteristics yield lower operational loss when compared to previous iterations, such as the conventional R60xxYNx and R60xxVNx series.

Switching Performance and Application Versatility
The complete portfolio encompasses 32 distinct models tailored for specific operational priorities. This includes 21 models within the high-speed switching R60xxXNx series and 11 models in the R60xxWNx series, which features integrated high-speed recovery characteristics. This division allows hardware engineers to select configurations based on precise architectural requirements, whether the design prioritizes drop-in component compatibility or focuses entirely on minimizing switching losses in industrial equipment.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

The 600V Super Junction MOSFET market features established alternatives such as the Infineon CoolMOS series, STMicroelectronics MDmesh, and onsemi SuperFET. Within these competitive ecosystems, TOLL and 8x8 DFN packages are consistently utilized to achieve low package parasitic inductance and superior thermal cycling capabilities compared to traditional through-hole packaging. Objective benchmarking for these high-voltage devices typically involves evaluating the specific on-resistance multiplied by the gate charge, a metric established as the Figure of Merit. Standard TOLL packages across these manufacturers provide a measurable reduction in printed circuit board footprint area compared to standard D2PAK components, while maintaining highly comparable junction-to-case thermal resistance. The standardized 3V to 5V gate threshold range ensures that standard gate driver integrated circuits can operate interchangeably across these different brands, providing the multi-sourcing stability required for high-volume automotive and industrial manufacturing.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
