Two-Phase Stepper Motor Driver Integrated Circuit for Industrial Automation

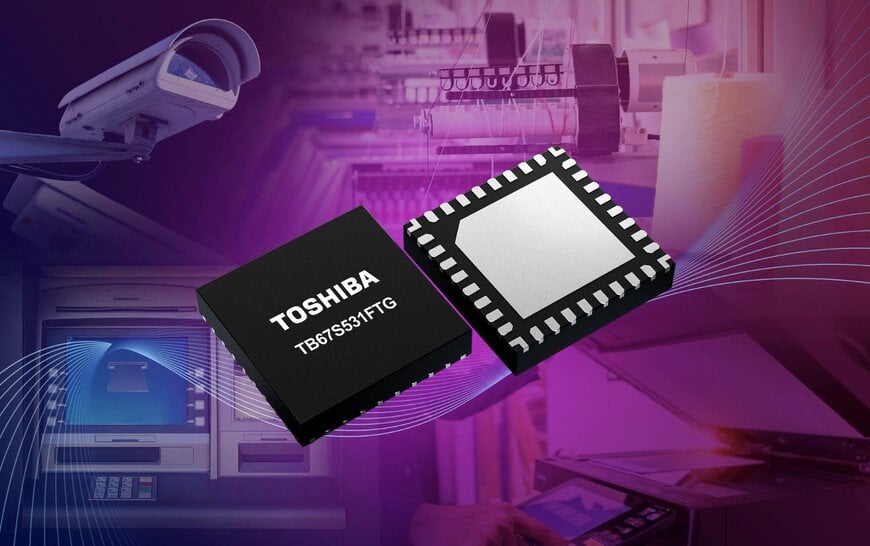

Toshiba has released the TB67S531FTG, a bipolar, two-phase constant-current stepper motor driver integrated circuit engineered to maintain stable motor operation in environments susceptible to power disturbances. This component addresses the specific actuation and precision requirements of industrial automation, commercial hardware, and office equipment, including sewing machines, automated scanners, and motorized surveillance cameras.

Phase-Input Architecture and Noise Immunity
A primary operational challenge in industrial automation and commercial machinery is maintaining continuous, precise motor operation during electrical interference. The component addresses this through a specific phase-input interface designed to regulate the electrical current across each motor phase. By controlling the current delivery systematically, this architectural approach minimizes abrupt transitional spikes that commonly lead to motor stalling. This mechanism ensures uninterrupted operation and consistent positioning for precision-dependent electromechanical assemblies.

Electrical Specifications and Thermal Management
The integrated circuit is engineered to support motor output voltages up to 40 V and drive currents reaching 2.0 A. To manage the thermal output associated with these power parameters, the device features a low typical on-state resistance (RDS(ON)) of 0.8 Ω. This reduction in internal electrical resistance directly decreases heat generation during continuous operation, thereby improving overall system energy efficiency and thermal performance without requiring excessive external heat sinking. The integrated circuit is housed in a compact 5.0 mm by 5.0 mm QFN32 package, which reduces the required spatial footprint on printed circuit boards.

Integrated Control Systems and Safety Mechanisms
To simplify the architecture of motion control systems, the integrated circuit consolidates several discrete components into a single package. It features an integrated current-sensing circuit for constant-current regulation, eliminating the need for some external components, alongside a built-in charge pump circuit required to drive the internal H-bridge output stage. The driver supports multiple excitation modes, allowing engineers to configure stepping resolutions ranging from full steps down to quarter steps based on the precision requirements of the target application. Furthermore, the architecture includes standard hardware protection mechanisms, including overcurrent detection, thermal cut-off, and undervoltage lockout, which collectively prevent catastrophic system failures under electrical fault conditions.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

In the competitive landscape of bipolar stepper motor drivers, this component operates within a performance tier comparable to established industry standards such as the Texas Instruments DRV8825 and the Allegro MicroSystems A4988. While older driver architectures often rely on external sense resistors to regulate current, modern iterations increasingly integrate this sensing capability directly into the silicon to save board space and reduce assembly complexity. The 0.8 Ω RDS(ON) positions this integrated circuit competitively for thermal efficiency, as traditional legacy drivers in the 2.0 A output class frequently exhibit resistances at or above 1.0 Ω. However, while this specific model offers up to quarter-step resolution to balance control and simplicity, specialized drivers intended for ultra-precise optical or medical systems often incorporate advanced microstepping capabilities reaching up to 1/256 steps.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
