High-performance multi-display digital signage infrastructure

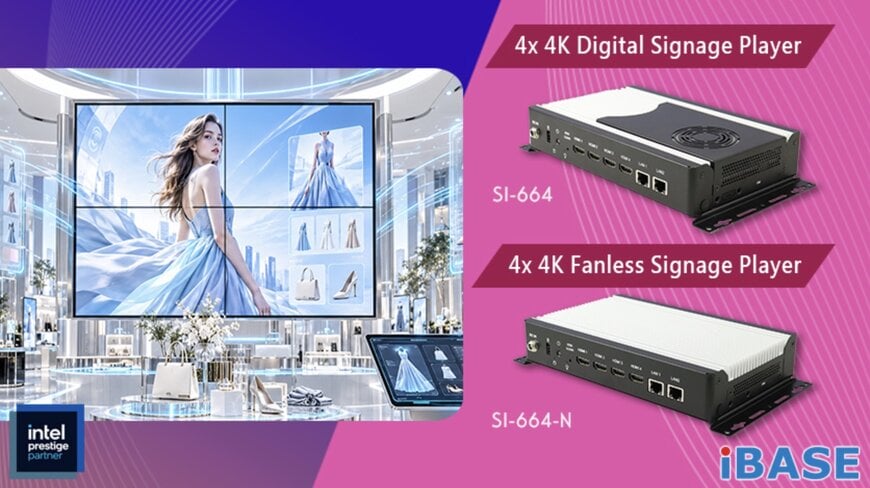

IBASE Technology introduces the SI-664 Series, a line of intelligent digital signage players utilizing Intel Core Ultra processors. These devices are engineered to manage multi-display digital signage infrastructure across smart retail, transportation hubs, hospitality venues, and public information networks.

Processing and Memory Specifications
The SI-664 Series integrates Intel Core Ultra 7 and Ultra 5 (Series 1) processors to support demanding industrial computing workloads, including multimedia playback, data visualization, and artificial intelligence applications. To handle the data throughput required for these tasks, the systems support up to 96 gigabytes of dual-channel DDR5-5600 memory. This memory bandwidth ensures stable concurrent video decoding and smooth interactive signage operations. The hardware is housed in a compact chassis measuring 220 x 137 x 46.5 millimeters, permitting integration into space-constrained physical environments such as digital menu boards, ticketing kiosks, and transit information pillars.

Display Outputs and Hardware Management
To facilitate multi-screen installations, the hardware delivers four independent 4K display outputs through one HDMI 2.1 port and three HDMI 2.0b ports. The systems incorporate built-in hardware Extended Display Identification Data (EDID) emulation, HDMI Consumer Electronics Control (HDMI-CEC), and automated display monitoring. These mechanisms establish a stable communication link between the media player and the connected screens, preventing resolution drops or display reorganization when monitors are rebooted, turned off, or temporarily disconnected.

Connectivity and Remote System Administration
Network connectivity is managed through integrated 2.5GbE and Gigabit Ethernet ports, providing sufficient bandwidth for high-resolution content updates. M.2 expansion slots are available to add NVMe storage, 5G/LTE cellular connectivity, Wi-Fi, and Bluetooth modules. The series is available in two distinct configurations: the actively cooled SI-664 for standard indoor environments, and the fanless SI-664-N for environments where dust ingress or moving parts pose a reliability risk. For distributed deployments, system administrators can utilize proprietary iSMART technology, Peripheral Device Power Control (PDPC), and optional out-of-band (OOB) management. These tools allow operators to monitor power states, control attached peripherals, and execute remote system recoveries without requiring on-site technical personnel.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

Within the digital signage infrastructure sector, media players engineered for four independent 4K displays typically compete on thermal efficiency, physical footprint, and processing architecture. The SI-664 Series competes directly with multi-display industrial computing platforms from manufacturers such as Advantech and Giada. While many incumbent four-screen media players still utilize 12th or 13th-generation processors paired with DDR4 memory, the shift to Intel Core Ultra (Series 1) and DDR5-5600 memory yields a measurable increase in memory bandwidth and introduces integrated neural processing unit (NPU) capabilities. This positions the SI-664 for localized computer vision tasks, such as real-time retail audience analytics and demographic estimation, whereas previous architectures frequently require external AI accelerators to process similar workloads efficiently. Furthermore, providing both fanless and actively cooled variants within the exact same 220-millimeter chassis allows integrators to standardize their mounting hardware across varying thermal environments.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
