Kyocera Launches 5908 Series Fully Shielded 0.4 mm Pitch Connector
Features double shielding for superior EMI suppression, supports PCIe Gen3 (8 Gbps) and USB 3.2 Gen2 (10 Gbps), with 30% higher retention.
global.kyocera.com
5908 Series Connector
Kyocera Corporation has developed the 0.4 mm pitch board-to-board connector, the 5908 Series, the first in its lineup to feature a fully shielded structure*1. Sales of this product, which enhances EMI characteristics*2 by suppressing electromagnetic interference and supports high-speed transmission, has begun on Thursday, July 31.
To address this, Kyocera has introduced a fully shielded structure in the 0.4 mm pitch board-to-board connector “5908 Series”, which offers excellent EMI characteristics by effectively suppressing noise intrusion and leakage.
MAIN FEATURES
1. Fully shielded structure provides excellent EMI characteristics, supporting high-speed transmission
A fully shielded structure has been adopted, in which the outer circumference of both the plug side
and the receptacle side is covered with a conductive metal (Figure 1). Since the fully shielded structure covers the main body and mating area of the connector with a metal shell, it can maximally suppress the intrusion and leakage of noise, thereby improving EMI characteristics. When mated, this product forms a double-shielded structure, allowing the electrical signal circuits to pass through the shield, which suppresses noise generation (Figure 2).
Supports high-speed transmission standards | PCI Express*3 Gen.3 (8Gbps) and USB*4 3.2 Gen.2 (10Gbps), etc.

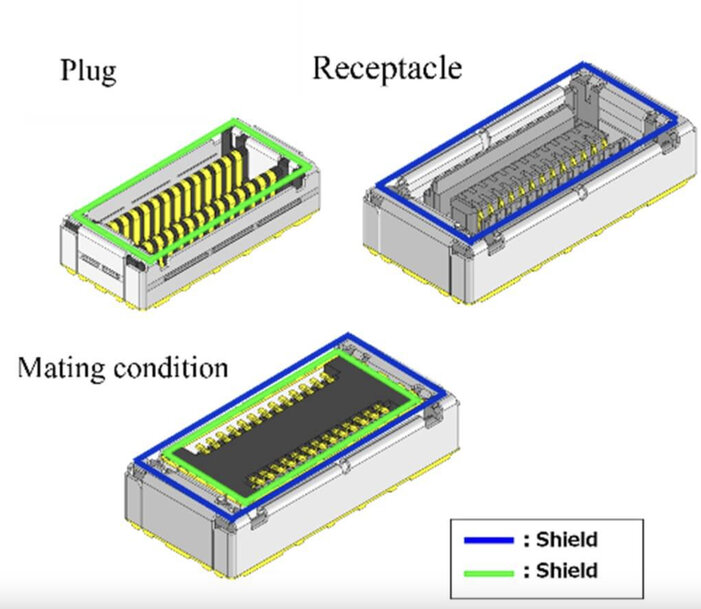

Figure１：Shielded Structure
The plug side and the receptacle side shown in the upper diagram are mated,
the shield section becomes double

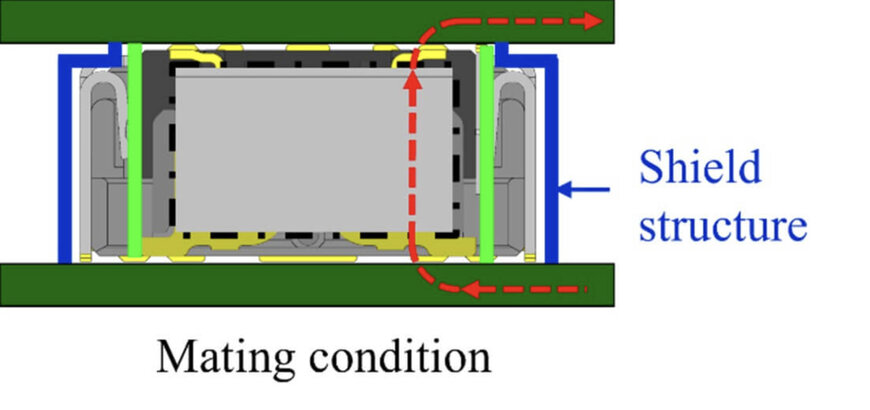

Figure2:
Flow of electric signals (red line) in the shield structure

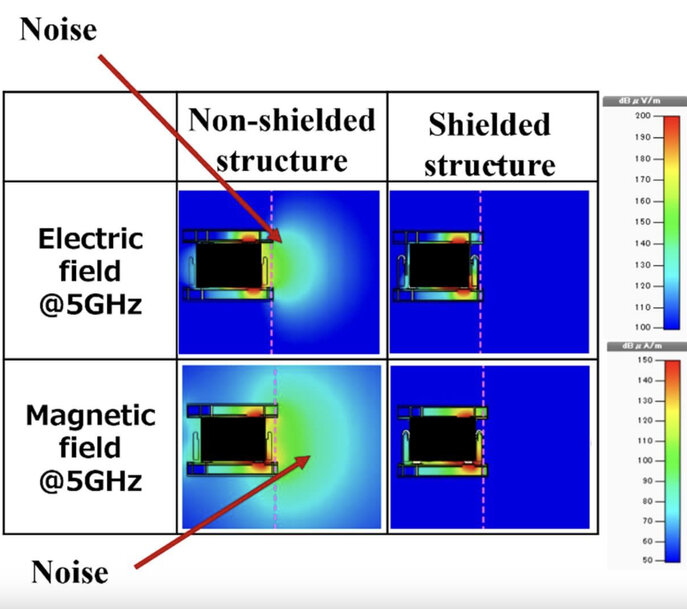

Figure3：
Difference in noise generated during current flow between a non-shielded
structure and a fully shielded structure (5908 series) (analysis results)
2. Unique locking mechanism increases robustness and improves retention force by 30%
The plug features a convex shape and the receptacle a concave shape, creating a locking structure that ensures secure mating and increases retention force by 30% compared to our previous products. Both components also feature an R-shaped design to facilitate assembly and enhance workability.

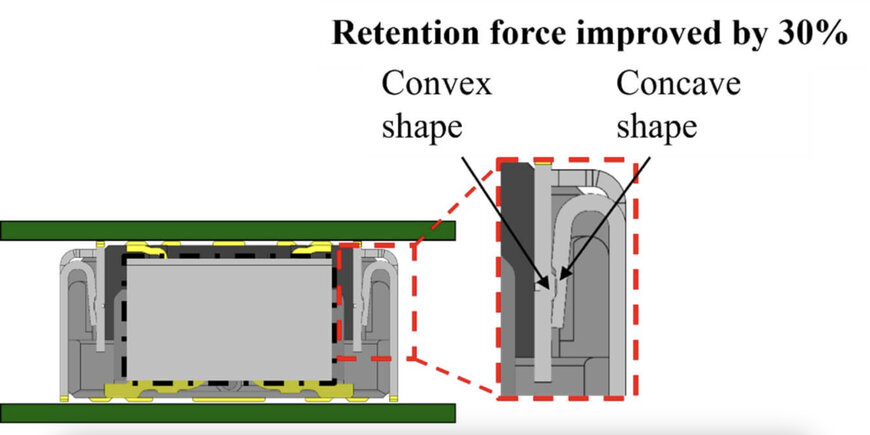

Figure４：Locking Mechanism

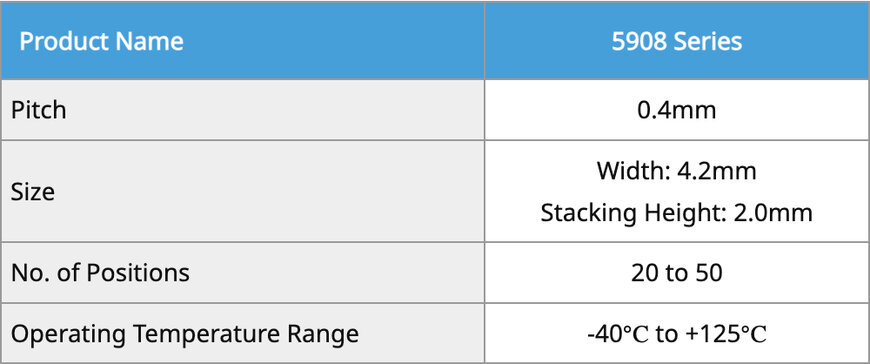

PRODUCT OVERVIEW | 5908 Series
Product Data Sheet
*1 – A structure in which both the outer circumference of the connector’s plug side and receptacle side are covered with conductive metal.
*2 – Electromagnetic Interference: Characteristics regarding the amount of electromagnetic interference generated and the resistance to such interference.
*3 – PCI Express (PCIe): A high-speed serial bus standard for connecting internal expansion cards (such as graphics boards and SSDs) to the motherboard of a personal computer.
*4 – USB: A general-purpose interface for connecting personal computers and peripheral devices (such as mice, keyboards, and storage devices).
