Rutronik Expands Portfolio With High-Temperature YT Hybrid Capacitors
SAMWHA’s YT series offers low ESR, high ripple resistance, and AEC-Q200 qualification, ensuring reliable performance up to +150 °C for automotive and industrial electronics.
www.rutronik.com

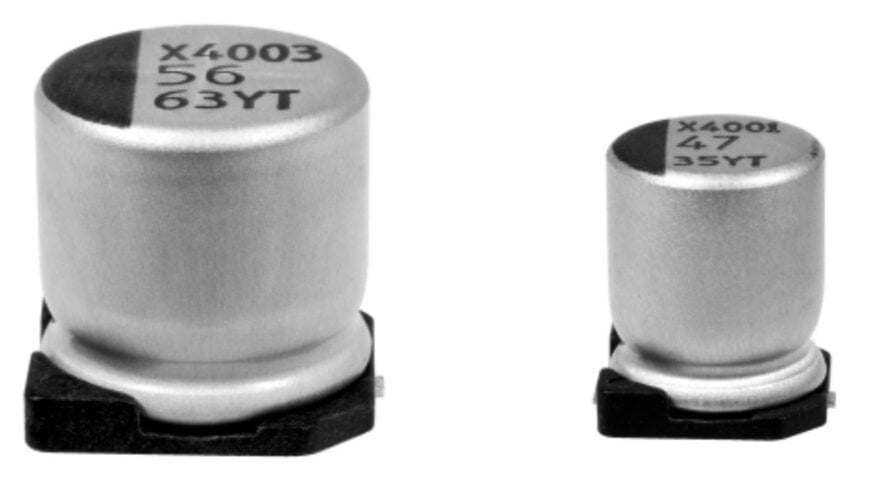

With the polymer hybrid aluminum electrolytic capacitors of the YT series from SAMWHA, Rutronik is expanding its portfolio with high-performance components for use in harsh environments. The YT series combines the advantages of conductive polymers with those of classic liquid electrolytes to achieve exceptionally low ESR, high ripple current capacity and a long service life of up to +150 °C. The capacitors are AEC-Q200 qualified, making them ideal for use in automotive and industrial electronics.
The polymer hybrid capacitors of the SAMWHA YT series combine high electrical performance, robustness and durability in a compact SMD package. With rated voltages from 25 V to 63 VDC, capacitances from 15 µF to 330 µF and an operating temperature range from -55 °C to +150 °C, these components are designed for continuous operation under the harshest conditions. The specified service life is 1,000 hours at +150 °C.
With the YT series, Rutronik offers its customers an economical and technically mature hybrid solution that bridges the gap between classic electrolytic and modern polymer technology – enabling a stable, long-lasting and highly efficient power supply in high-temperature environments.
Benefits at a glance
- Very low ESR and high ripple current resistance
- Nominal voltage: 25 V to 63 VDC
- Capacity range: 15 µF to 330 µF
- Operating temperature range: -55 °C to +150 °C
- Service life: 1,000 hours at +150 °C
- AEC-Q200 qualified
- High stability and reliability even at high temperatures
- Cost-effective alternative compared to competing products
Application examples
- Motor control units, sensors and actuators in automobiles
- ADAS and lighting systems (e.g. LED controls)
- On-board chargers and DC/DC converters in electric vehicles
- Frequency converters and switching power supplies in industrial applications
- Control electronics in robotics and automation
- Highly reliable systems in medical technology and aviation
