SiC Power Modules Improve Reliability in Harsh Environments

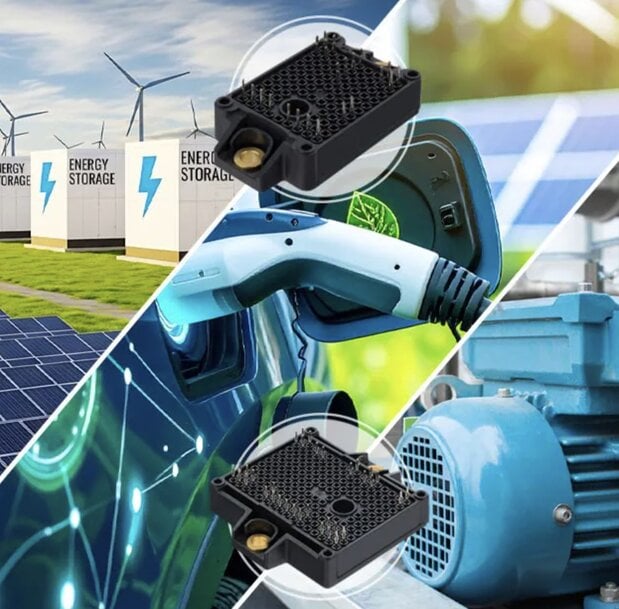

Microchip Technology has launched its BZPACK mSiC power modules, engineered to meet stringent High Humidity High Voltage High Temperature Reverse Bias (HV-H3TRB) requirements. The modules are designed for high-reliability power conversion in industrial and renewable energy applications, where environmental stress and long operational lifetimes are critical.

Reliability Under Extreme Conditions
The BZPACK modules are qualified beyond the standard 1,000-hour HV-H3TRB test, which evaluates resistance to moisture-induced degradation under high voltage and temperature conditions. This capability is essential in applications such as solar inverters, energy storage systems, and industrial drives, where exposure to humidity and thermal cycling can affect long-term performance.

A Comparative Tracking Index (CTI) of 600 V enhances insulation performance, reducing the risk of surface tracking and electrical failure. Stable Rds(on) across temperature ranges further supports consistent electrical behavior under varying operating conditions.

Flexible Topologies for System Design
The module family is available in multiple configurations, including half-bridge, full-bridge, three-phase, and PIM/CIB topologies. This flexibility allows designers to tailor system architectures based on performance, cost, and application requirements.

Substrate options in aluminum oxide (Al₂O₃) and aluminum nitride (AlN) provide different trade-offs between thermal conductivity and cost, enabling optimized thermal management strategies in high-power systems.

Manufacturing Efficiency and Integration
The BZPACK modules feature a baseplate-less design with Press-Fit, solderless terminals, reducing assembly complexity and improving manufacturing consistency. Optional pre-applied thermal interface material (TIM) further simplifies integration and enhances thermal performance.

Pin compatibility and industry-standard footprints support multi-sourcing strategies, helping manufacturers maintain supply chain flexibility within a digital supply chain environment.

SiC MOSFET Technology and Performance
The modules leverage Microchip’s mSiC MOSFET technology, which offers high efficiency and fast switching characteristics. The MB and MC MOSFET families support gate-source voltages of 15 V or higher and are available in standard packages such as TO-247-4.

The MC family integrates a gate resistor, improving switching stability and reducing energy losses in multi-die configurations. These features contribute to improved system efficiency and reliability in demanding applications.

Application Scope Across Energy Systems
The BZPACK modules are suited for a wide range of power conversion systems, including renewable energy installations, industrial automation, and electrified infrastructure. Their robustness under harsh environmental conditions makes them particularly relevant for outdoor and high-humidity deployments.

Relevance for Sustainable Power Electronics
As industries transition toward electrification and renewable energy, the demand for durable and efficient power electronics continues to grow. Silicon carbide (SiC) technologies play a key role in improving energy efficiency and reducing system losses.

By combining advanced SiC devices with high-reliability packaging and simplified integration, the BZPACK platform supports the development of long-lasting, high-performance systems aligned with sustainability and operational efficiency goals.
