Northrop Grumman Harnesses Synthetic Diamonds to Power Next Generation Defense Microelectronics

Modern electronic systems have reached a physical plateau where traditional materials like silicon and gallium nitride (GaN) struggle to manage the heat and power demands of advanced warfare. To address this limitation, researchers at Northrop Grumman’s Microelectronics Center (NGMC) are developing diamond-based semiconductors. These lab-grown diamonds are not gemstones but microscopic, opaque crystals that offer thermal and power-handling capabilities far exceeding any currently available solution.

Superior Thermal Management and Power Density

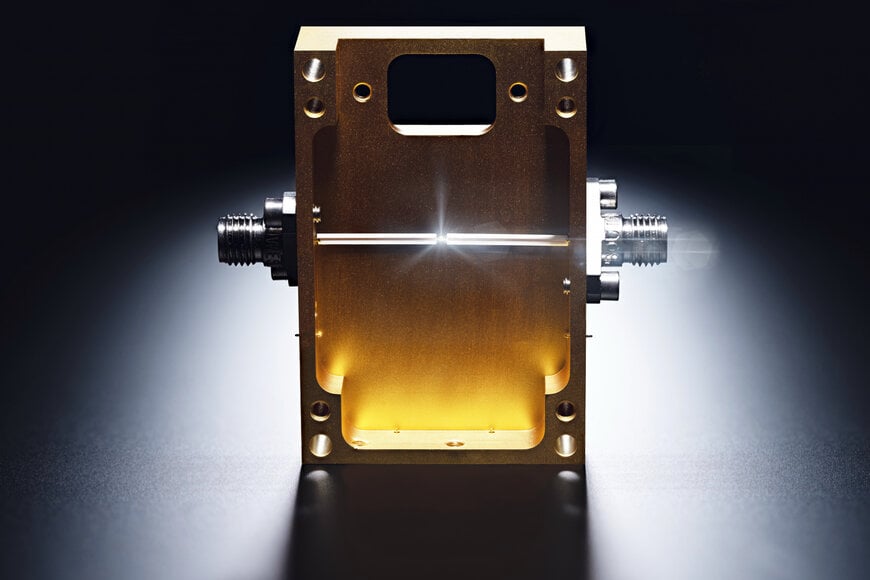

The primary advantage of diamond over conventional materials is its extraordinary ability to manage heat. Diamond conducts heat five times more effectively than copper and can withstand extreme temperatures without structural failure. In recent testing at a secure semiconductor facility, a diamond-based receiver-protection component successfully handled over 100 Watts of power. This performance is more than double the capacity of current market standards, proving that diamond can protect sensitive systems from sudden power spikes while keeping signal paths clear.

Enhancing Performance in Harsh Environments
Beyond heat dissipation, diamond-based electronics allow for the creation of systems that are significantly smaller, lighter, and more energy-efficient. Because a single 1 mm wafer can power complex sensors and airborne platforms, the overall footprint of the hardware is reduced without sacrificing performance. While gallium nitride remains a staple in the industry, diamond is emerging as the superior choice for high-speed data transmission and durability in the most punishing conditions, including outer space and high-velocity transit.

The Shift Toward Diamond-Based Infrastructure
Since 2019, the development of this technology has moved from small-scale laboratory research to specialized cleanroom manufacturing. By leveraging partnerships with institutions like Arizona State University’s Southwest Advanced Prototyping Hub, engineers are now focused on scaling these diamond wafers to larger diameters. This transition ensures that diamond-based chips can be integrated into future radar, satellite, and quantum sensing applications, providing a level of resilience and power density that traditional semiconductors cannot match.
