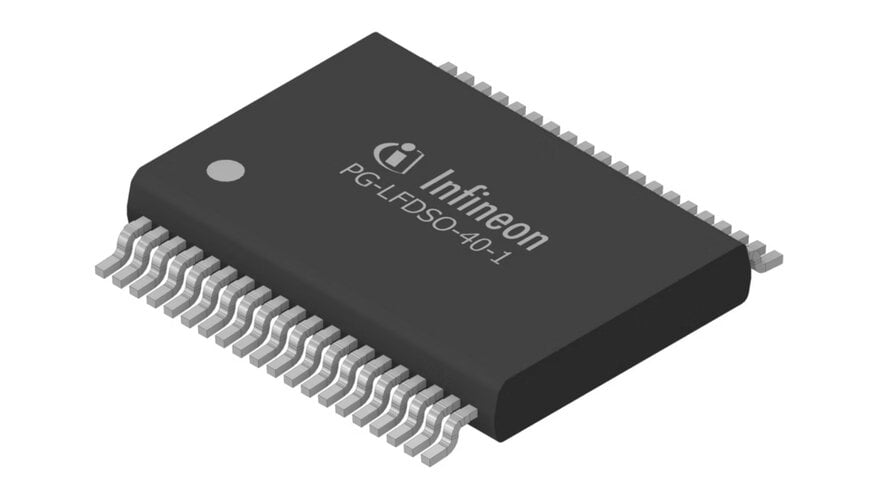

Digital Power-Path Protection for 800-Volt AI Server Architectures

Infineon Technologies has released the XDP8HD40S-1, a high-voltage hot-swap controller designed for digital power-path protection in AI server architectures operating at ±400 VDC and 800 VDC. This component enables power modules, converters, and graphical processing units (GPUs) to be safely connected and disconnected without interrupting overall system operation in high-density computing environments.

Transitioning to High-Voltage Server Architectures
As AI server architectures scale rack power densities, the transition from traditional 48-volt systems to ±400-volt and 800-volt direct current (VDC) power grids requires specialized protection mechanisms. Operating at these higher system voltages increases the complexity of controlling inrush currents and shielding infrastructure from transient voltage events. The controller extends the existing power semiconductor portfolio into the protection and monitoring layer, targeting applications such as 1,500-volt intermediate bus converter systems, battery backup units, and high-voltage rack power delivery setups.

Mechanisms for Digital Power-Path Protection
The XDP8HD40S-1 functions by integrating digital Safe Operating Area (SOA) control alongside programmable active protections. A variable pulse SOA control mode, referred to as Boost Mode, optimizes system startup behavior while ensuring the power switch remains within safe operational limits. To handle high-voltage power stages, an integrated gate driver supports external silicon carbide (SiC) cascode configurations utilizing a MOSFET and JFET combination. During abnormal operating conditions, the device executes a fast power-switch shutdown using a configurable 1.5 A pull-down current, preventing hardware damage from power surges.

Telemetry and Diagnostic Capabilities
Real-time power monitoring is achieved through 12-bit analog-to-digital converters, which deliver measurement accuracies of approximately 1 percent for both voltage and current, and 3 percent for total power. Analog power monitoring reporting achieves 1.5 percent accuracy, complemented by integrated energy metering for continuous tracking. For system management, the controller utilizes a PMBus 1.5 interface to communicate with existing data center management frameworks. A built-in black-box recording function captures event data to assist engineers with fault analysis and system debugging.

Operational Integration and Strategic Positioning
The device accommodates a broad operating voltage range, requiring VDDB inputs from 4.5 V to 24 V and VDDA from 4.5 V to 13.2 V. It includes programmable input and output overvoltage and undervoltage protection, along with external temperature sensor support. Magdalene Boebel, Senior Vice President and Business Line Head of Power System ICs at Infineon, noted that the device allows system designers to implement reliable hot-swap solutions for ±400 V and 800 V architectures while supplying the monitoring capabilities required to maximize server uptime and operational efficiency.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

Within the high-voltage hot-swap controller market targeting data center infrastructure, solutions must manage extreme inrush currents associated with 400 V and 800 V DC buses. Comparable technologies include high-voltage controller architectures from Analog Devices and Texas Instruments. Benchmarking in this segment relies on objective parameters including analog-to-digital converter (ADC) resolution for telemetry, PMBus communication standards, and the ability to drive wide-bandgap semiconductors like SiC or GaN. The XDP8HD40S-1 differentiates itself by specifically integrating a gate driver optimized for SiC cascode configurations (MOSFET and JFET combinations) and maintaining 1 percent voltage and current measurement accuracy through its 12-bit ADC, which serves as a standard performance threshold for enterprise-grade power monitoring in AI server architectures.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
