Toshiba Launches Compact, High-Speed Photo Relays for Enhanced Semiconductor Testing Efficiency
Rutronik presents Toshiba’s TLP3414S and TLP3431S photo relays with faster switching, low resistance, and compact design for high-performance semiconductor test systems.
www.rutronik.com

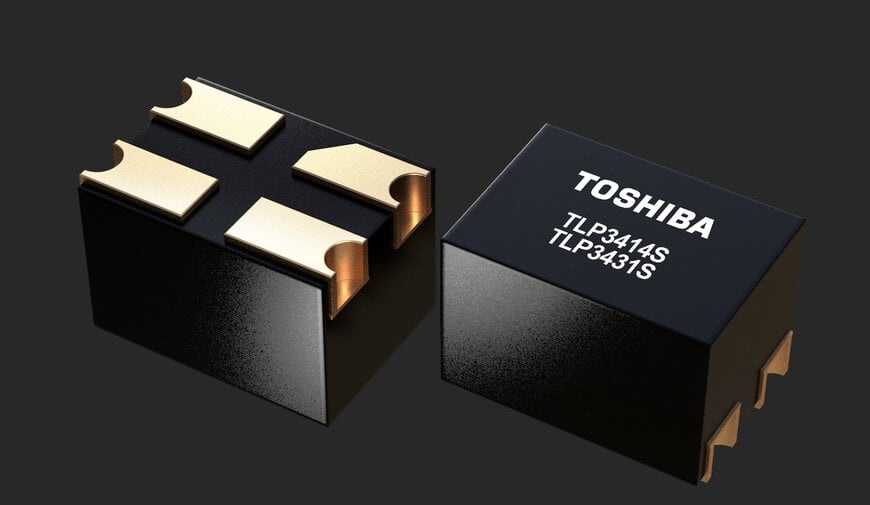

Rutronik introduces Toshiba's TLP3414S and TLP3431S, new high-speed photo relays for semiconductor testing. Improved infrared LEDs and optimized photodiode arrays in these models enable switch-on times to be reduced by up to 62 % to 150 µs while maintaining signal quality. This significantly increases efficiency in test systems. In addition, the 20 % smaller S-VSON4T package saves valuable space on the circuit board. These performance features make the relays the ideal choice for pin electronics applications in semiconductor testers that require high switching speeds and precise signal control.
The TLP3414S has a maximum switch-on resistance of 3 Ω, the TLP3431S even only 1.2 Ω. The typical output capacitance of both variants is 6.5 pF - a decisive factor in reducing high-frequency signal losses when switched off. The voltage and current values in the ON and OFF phases are 40 V / 250 mA for the TLP3414S and 20 V / 450 mA for the TLP3431S.
Both photo relays are encased in the space-saving S-VSON4T housing with dimensions of just 1.45 mm × 2.0 mm × 1.3 mm. This not only supports the miniaturization of modern test systems but also improves thermal and electrical performance thanks to shorter signal paths.
Benefits at a glance:
- Faster switching times: Up to 62 % shorter switch-on times compared to previous models (only 150 μs)
- Compact design: New S-VSON4T housing saves around 20 % platinum surface area
- High switching capacity: TLP3414S: 40 V / 250 mA, TLP3431S: 20 V / 450 mA
- Low ON resistance: TLP3414S: max. 3 Ω, TLP3431S: max. 1.2 Ω
- Low output capacitance: typically 6.5 pF
- Optimized optical coupling: Improved infrared LEDs and photodiode arrays for high efficiency
For more information to Toshiba's TLP3414S and TLP3431S and a direct ordering option, please visit our e-commerce platform.
