TDK launches SmartAutomotive 6-axis IMU with extended temperature range globally
The IAM-20680HV is a cost-effective 6-axis motion tracking device for automotive in-cabin applications, offering proven operation up to +125°C, low-noise performance, and a ±125 dps gyroscope for enhanced navigation.
www.tdk.com
TDK Corporation has announced global distribution availability of the InvenSense SmartAutomotive™ IAM-20680HV, a high-value 6-axis IMU for a variety of in-cabin applications that also require the component to survive in harsh conditions up to +125 °C, with performance guaranteed up to +105 °C. It relies on robust TDK technology and design that are widely adopted in the automotive market, setting a quality benchmark for non-safety applications.

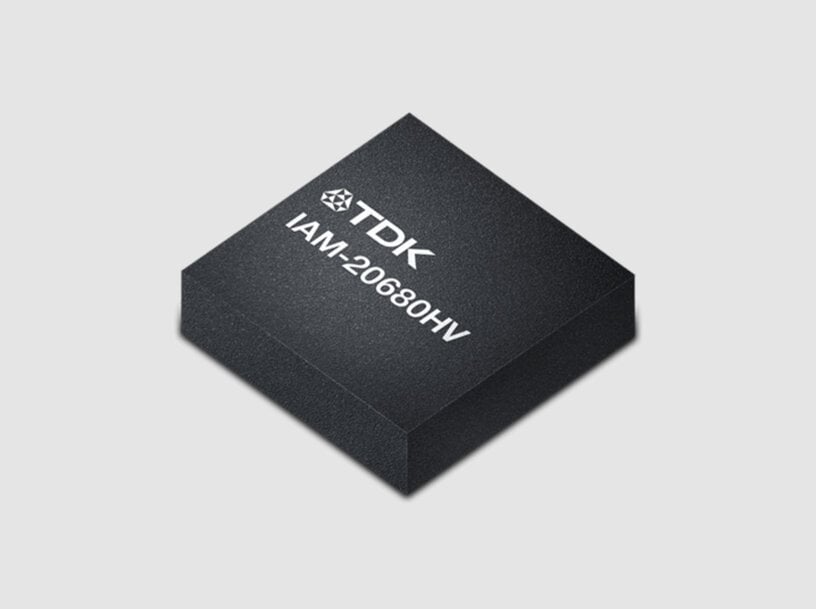

The IAM-20680HV integrates a 3-axis gyroscope and a 3-axis accelerometer within a compact 3 x 3 x 0.75 mm³ (16-pin LGA) package, offering pin-to-pin and register compatibility with all other TDK SmartAutomotive™ MEMS sensors in LGA packages. Featuring a selectable ±125 dps gyroscope full-scale, the IAM-20680HV provides higher resolution for a seamless user navigation experience. Complementing other products in the same SmartAutomotiveTM family, the IAM-20680HV enriches the IMU product portfolio offering the best trade-off to address cost-effective automotive applications.
With industry-leading low-noise performance, sensitivity tolerance, and high reliability, the product empowers engineers to scale a diverse range of automotive applications, including but not limited to telematics, heads-up displays, navigation systems, door control, and crash-recording.
Main applications
- GNSS modules & positioning
- Heads-up displays
- Cockpit domain controllers
- Navigation systems
- E-calls
- Telematic box positioning
- Door control
- Driving-style recording
Main features and benefits
- Automotive-qualified based on AEC Q100 Grade 2
- Extended operating temperature range up to +125 °C
- 16-bit digital-output for both gyroscope and accelerometer
- Gyroscope: X-, Y-, and Z-axis angular rate sensors with a user-programmable full-scale range of ±125 dps, ±250 dps, ±500 dps, ±1000 dps
- Accelerometer: X-, Y-, and Z-axis accelerometer with a programmable full-scale range of ±2 g, ±4 g, ±8 g, ±16 g
- User-programmable digital filters for gyroscope, accelerometer, and temperature sensor
- Embedded self-test
- Two embedded and configurable interrupt lines
- Reliability testing performed according to AEC-Q100: PPAP and qualification data available upon request
- Final test over temperature up to 105 °C
