Diodes Targets Automotive PCIe Signal Integrity

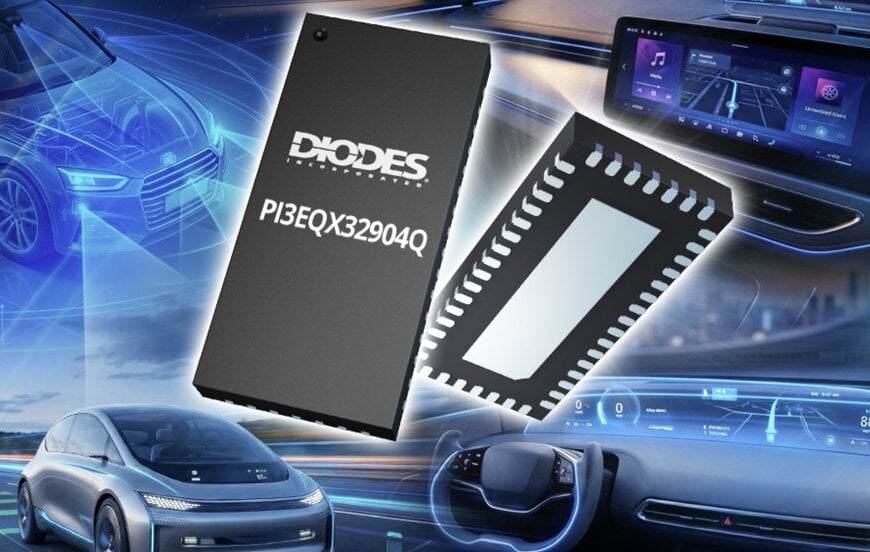

As automotive cockpit systems consolidate ADAS, infotainment, and digital instrument clusters into centralized computing architectures, maintaining signal integrity across high-speed interfaces has become a growing design challenge. In this context, Diodes Incorporated introduced the PI3EQX32904Q, a four-channel automotive ReDriver for 32Gbps automotive data transmission in smart cockpit platforms.

High-speed interfaces inside centralized cockpit systems
The PI3EQX32904Q is designed for GPU and CPU-based system-on-chip architectures used in next-generation cockpit electronics. These systems increasingly rely on high-bandwidth protocols such as PCI Express^® (PCIe^®) 5.0, SAS4, and Compute Express Link (CXL) to connect processors, memory, storage, and display subsystems inside centralized vehicle computing platforms.

At 32Gbps, signal degradation caused by PCB trace losses, intersymbol interference, and jitter becomes a limiting factor for reliable data transfer. The ReDriver addresses these issues using a 0.13µm silicon germanium (SiGe) BiCMOS process, combining linear equalization and low-jitter signal conditioning to maintain data integrity across longer transmission paths.

The device includes four independent differential channels and operates transparently across different coding schemes and data rates without interfering with protocol link training. This allows the component to support evolving automotive interface standards without requiring changes to the communication architecture.

Programmable equalization through I2C control
The ReDriver integrates programmable linear equalization, flat gain adjustment, and output linearity control accessible through an I2C interface. This allows engineers to tune signal characteristics for different PCB layouts, connector configurations, and cable conditions during system integration.

By extending usable PCB trace lengths, the component can reduce the need for additional retimers or board redesigns in dense cockpit electronics. This can help lower system-level power consumption and reduce routing complexity in automotive electronics platforms where space and thermal constraints are significant.

The device also supports Modern Standby (S0 Low Power Idle) operation. In deep standby mode, power consumption remains below 5mW while retaining rapid wake-up capability for vehicle systems that require low standby energy usage without sacrificing responsiveness.

Automotive operating range
The PI3EQX32904Q operates from a 3.3V supply and supports an operating temperature range from -40°C to +85°C, aligning with automotive electronics requirements. The component is packaged in a W-QFN3063-46 (ZR46) enclosure.
